NightFighter S

Very long-range man-portable RF & GPS threat mitigation

Rapid, effective, operator-safe RF neutralisation
of drones and autonomous threats

See NightFighter in action

Over-The-Horizon capability denial

Integrated air and naval defence

protect your police or military force from drones

Communications
denial

Targeted Equipment
Interference (TEI)

Force & Area
protection

S

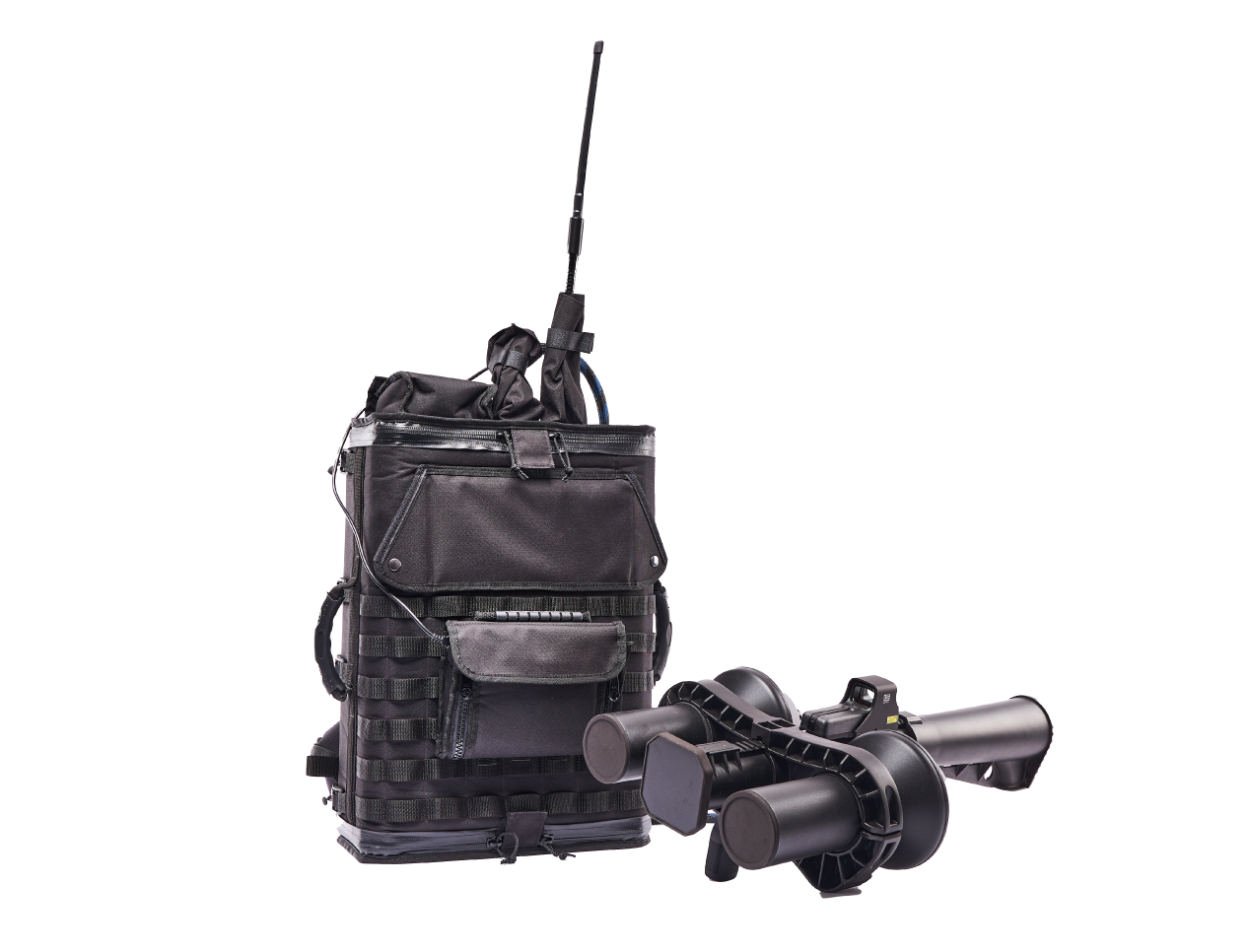

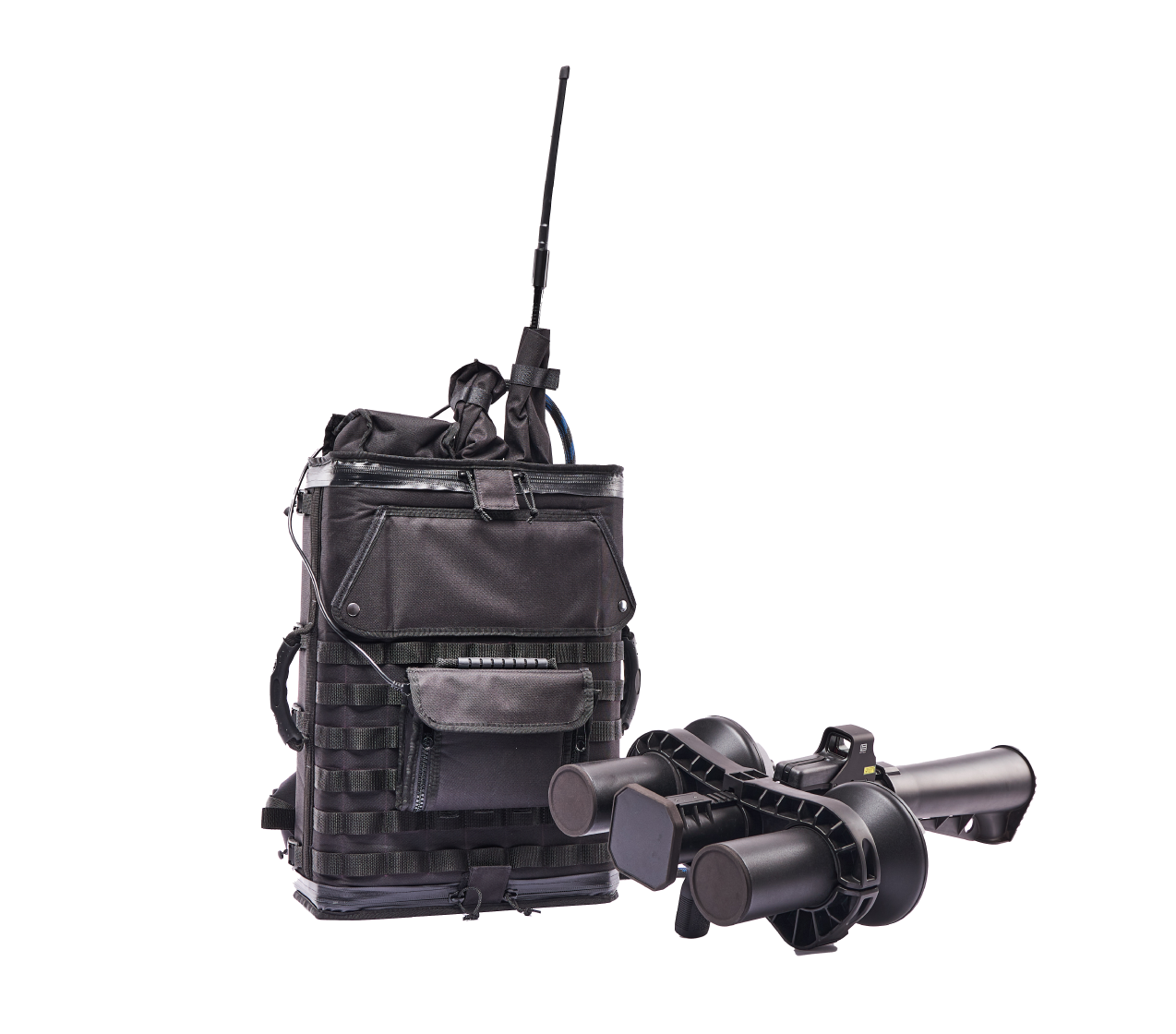

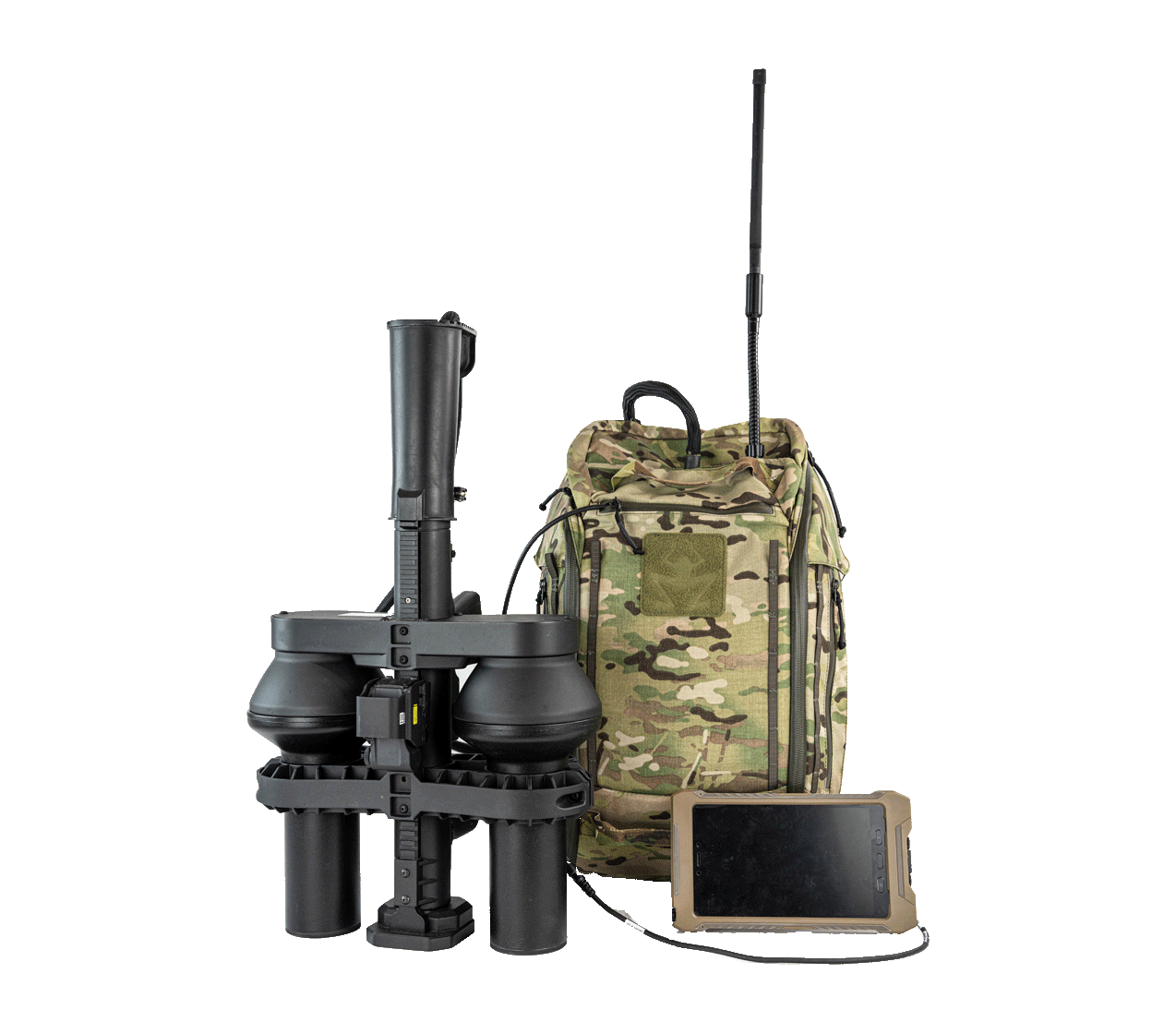

NightFighter S is a high-performance, standalone threat neutralisation solution for use in a wide range of military and civil protection environments. This two-piece man-portable system comprises a handset and tablet controller linked to electronics housed in an all- weather ‘X-Pack’ that can be deployed rapidly in the field by one or two operators.

SERIOUS RANGE

The handset features a directional RF antenna array, sighting device, pistol grip and adjustable forward handgrip for comfortable, precise operation. System electronics are contained within NightFighter’s ergonomically designed X-Pack and linked to the handset. The X-Pack also houses a military specification omni- directional antenna for operation of the system’s lowest frequency threat bands.

Operationally proven in a broad range of military and civil protection roles

Very long effective range, tested successfully OTH (Over-the-Horizon)

Effective against wide range of rotary and fixed wing drones as well as other Wi-Fi enabled target devices

Operator-safe

Ideal for use in complex RF environments

Robust, ruggedised design

9 RF and GPS bands for broad threat coverage

Networked via optional SecondSight™ plug-in

FLEXIBLE MISSION PROFILES

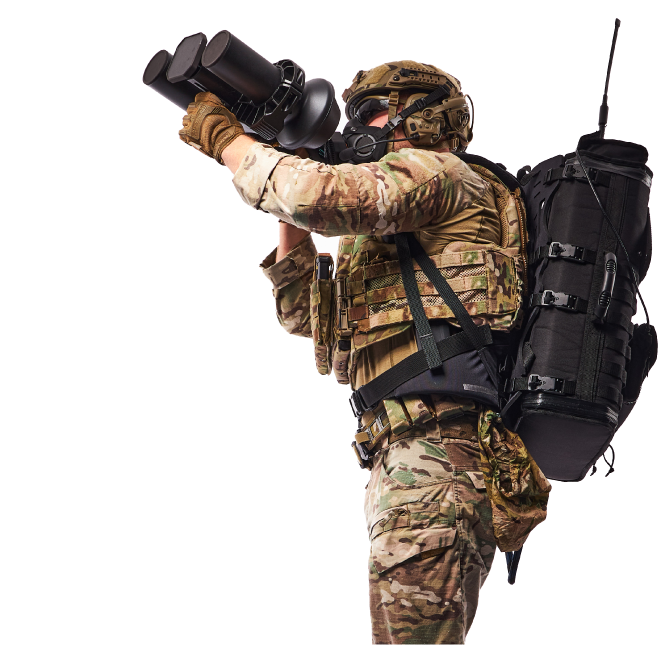

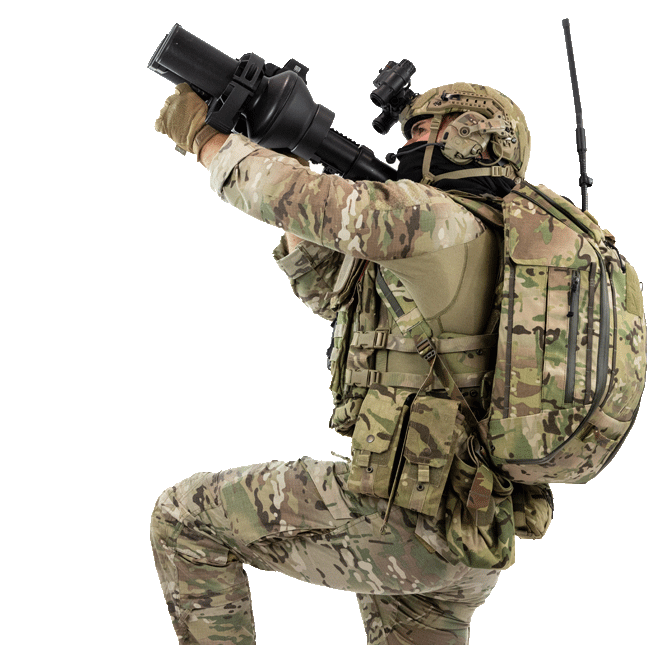

NightFighter S can be deployed in dismounted configuration by one or two system operators.

NightFighter's modular architecture also provides flexibility for integration via RWS (Remote Weapon Station) into vehicular, mobile or fixed platforms to allow use under control of a remote operator, or autonomously in conjunction with other threat detection/sensor systems.

Transition between dismounted and integrated configurations is achieved in minutes, with bespoke mounting options available to suit a wide range of C-UAV mission profiles, on land or at sea.

NIGHTFIGHTER
Specifications

S
Supported missions
Man-portable long range/OTH UAV neutralisation
/ TEI / GPS denial
Form factor
2-piece
Operating personnel
1-2
Use Case
OTH (Over-the-Horizon)
Coverage
Wi-Fi, GPS, military bands
Weight
Handset: 5.2 kg / Backpack: 17 kg with batteries
Dimensions
Handset: L63 x W39 x H26 cm with sight and stock
Backpack: L28 x W49 x H58 cm
Sensor integration
Directed RF beam
Network Enabled
UK Defence Standards Certiﬁcations
Operator-safe
X
Supported missions
Handheld UAV neutralisation
/ TEI / GPS denial
Form factor
1-piece
Operating personnel
1
Use Case
BVLOS (Beyond Visual Line of Sight)
Coverage
Wi-Fi, GPS, military bands
Weight
6.3 kg with battery
Dimensions
L63 x W39 x H26 cm with sight and stock
Sensor integration
Directed RF beam
Network Enabled
UK Defence Standards Certiﬁcations
Operator-safe

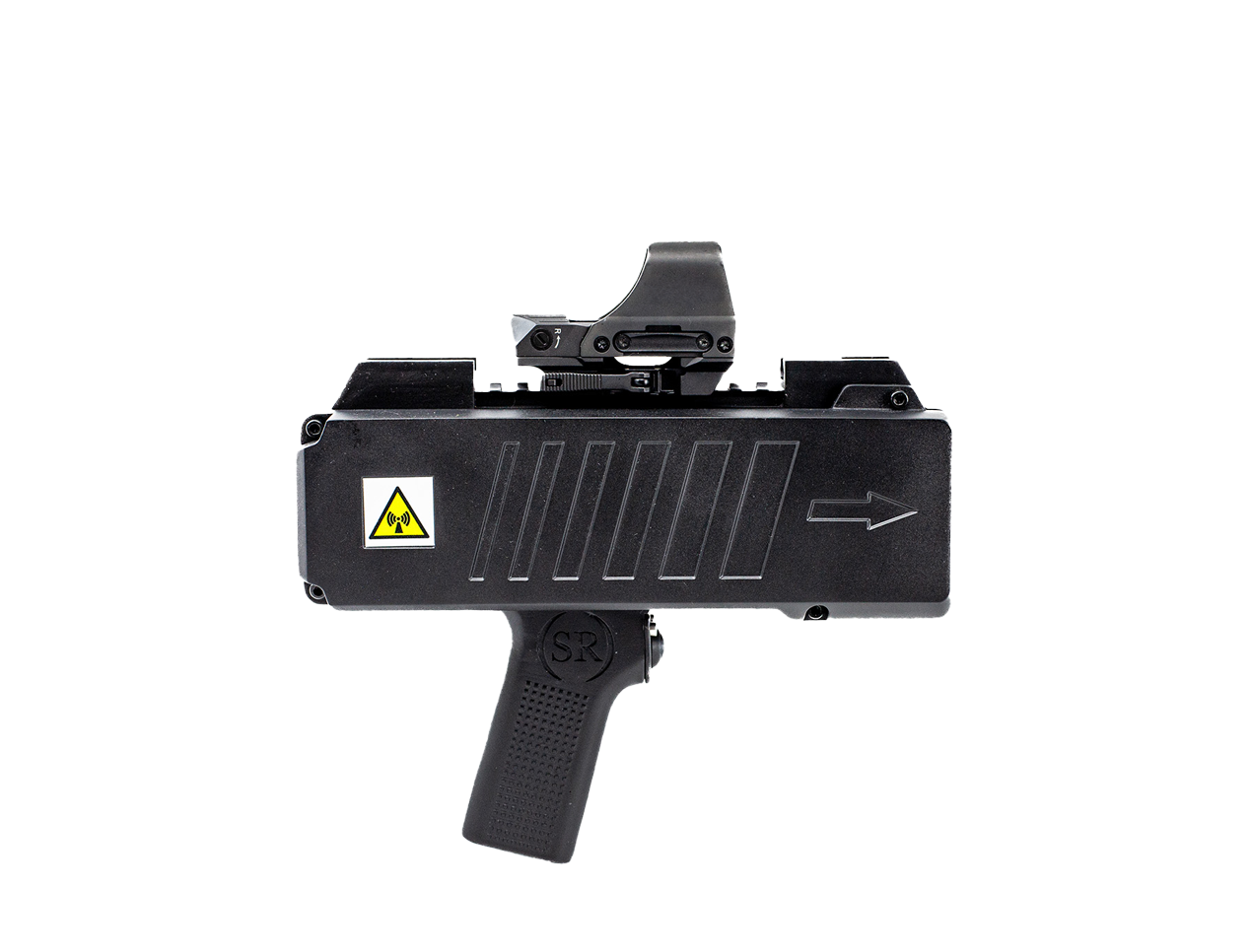

Mini
Supported missions
Sidearm / weapon-mounted UAV mitigation
/ TEI
Form factor
1-piece
Operating personnel
1
Use Case
VLOS (Visual Line of Sight)
Coverage
Wi-Fi, military band
Weight
2.2 kg with battery
Dimensions
L24 x W15 x H23 cm with sight
Sensor integration
Directed RF beam
Network Enabled
UK Defence Standards Certiﬁcations
Operator-safe
