Effective against all GNSS-enabled drones/other targets

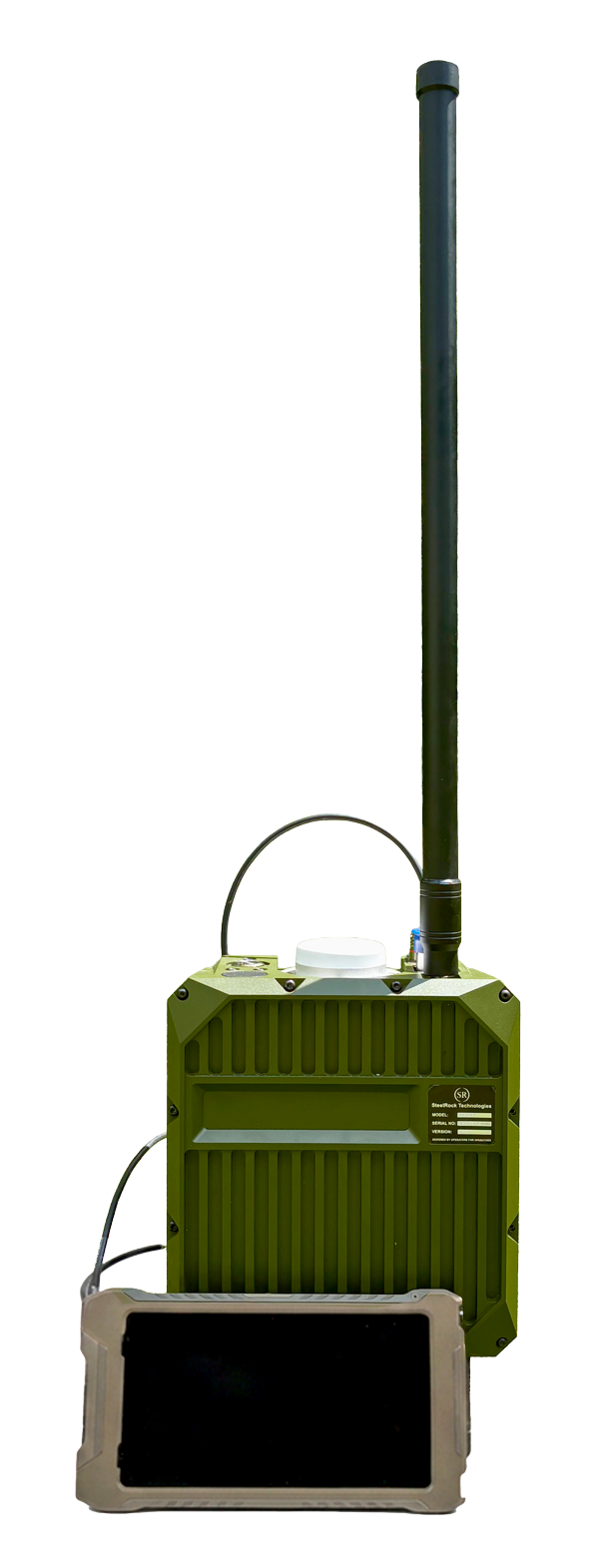

NightFighter Echo® is an advanced next-generation deception and manipulation solution for military and civil protection applications.
Suitable for mobile or fixed deployment, NightFighter Echo® intercepts positioning information from satellite systems relied on by drones for navigation and wayfinding.
Powerful AI algorithms compromise genuine satellite signals, feeding manipulated navigation and timing information to the target UAV or other GNSS - enabled system . This allows the NightFighter Echo® operator to take control over the target drone’s behaviour, directing the UAV onto a new flightpath or forcing it to ground.
NightFighter Echo® is highly effective against loitering munitions as well as other GNSS enabled ballistic systems as part of a layered air defence solution.
UAV airspace denial
GNSS - enabled military and civilian UAVs are reliant on Global Navigation Satellite Systems (including GPS, BeiDou, GLONASS and Galileo constellations) for navigation purposes. This includes fully autonomous drones that rely on satellite signals to execute a pre-programmed flight plan without the supervision of a human operator.
GNSS drone deception overpowers legitimate satellite signals with stronger signals generated by NightFighter Echo. Providing incorrect positioning and timing data, this spoofing signal misleads the target drone's GPS receiver into calculating a false position and heading, allowing an attacker to misdirect or hijack the UAV.
NIGHTFIGHTER Specifications
X
Supported missions
Handheld UAV neutralisation
/ TEI / GPS denial
Form factor
1-piece
Operating personnel
1
Effective range
BVLOS (Beyond Visual Line of Sight)
Radio spectrum band coverage
7 preset bands including Wi-Fi, GNSS, military
Weight
6.2 kg with battery
Dimensions
L63 x W39 x H26 cm with sight and stock
Foxtrot
Supported missions
Man-portable long range/OTH UAV neutralisation
/ TEI / GPS denial
Form factor
2-piece
Operating personnel
1-2
Effective range
OTH (Over-the-Horizon)
Radio spectrum band coverage
User configurable, including Wi-Fi, LTE, GNSS, military
Weight
Handset: 5.2 kg / Backpack: 17 kg with batteries
Dimensions
Handset: L63 x W39 x H26 cm with sight and stock Backpack: L27 x W37 x H54 cm
S
Supported missions
Man-portable long range/OTH UAV neutralisation
/ TEI / GPS denial
Form factor
2-piece
Operating personnel
1-2
Effective range
OTH (Over-the-Horizon)
Radio spectrum band coverage
10 preset bands including Wi-Fi, GNSS, military
Weight
Handset: 5.2 kg / Backpack: 14-16 kg with batteries
Dimensions
Handset: L63 x W39 x H26 cm with sight and stock Backpack: L27 x W37 x H54 cm
